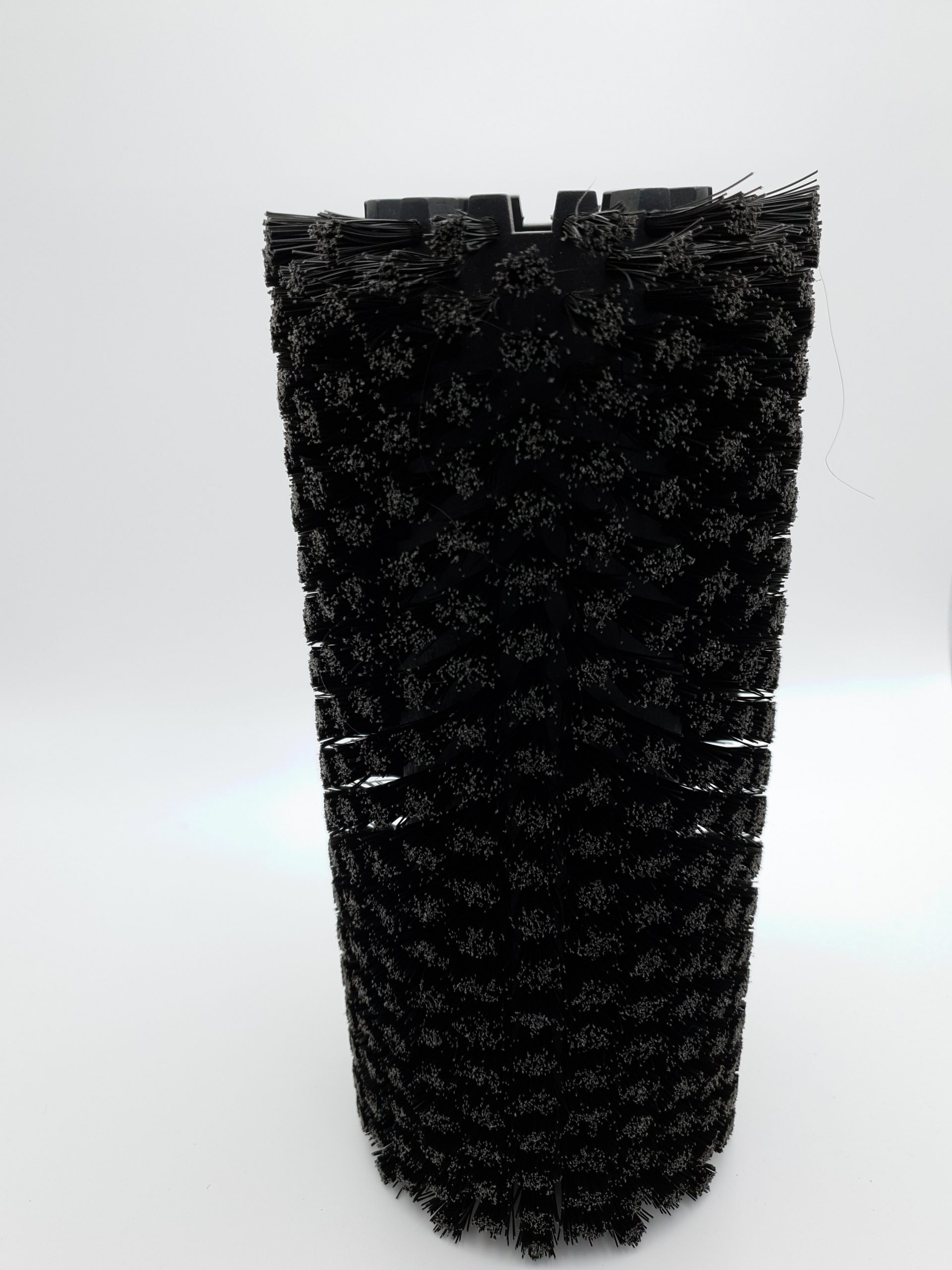

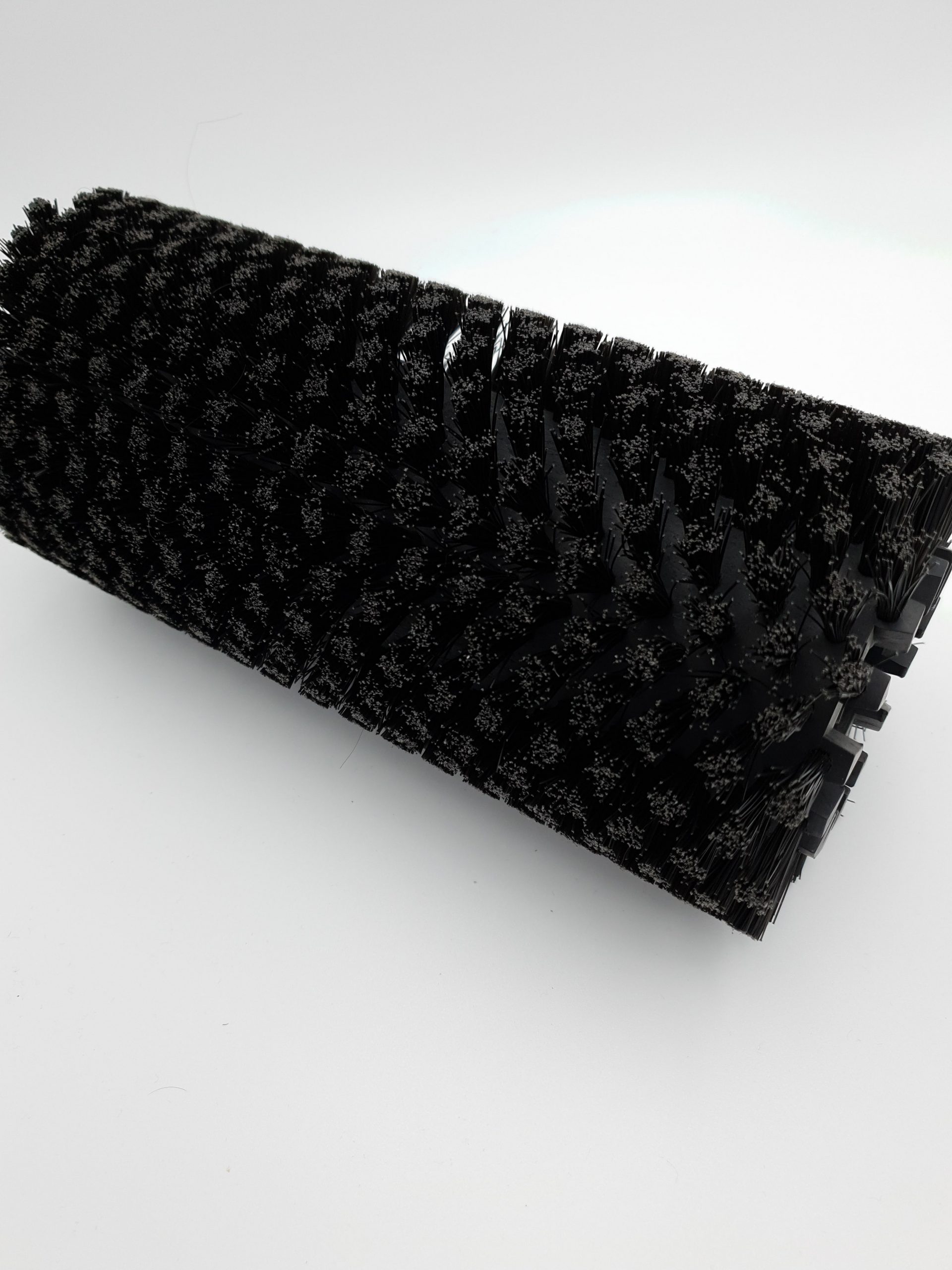

Standard Toothed Modular Cylindrical Brush

The Industrial Cylindrical Brush Economic Tooth Module

Body diameter 75mm
Module length 250mm
Inner diameter /shaft 50mm
Total diameter 250mm (automatic machine) and 500mm (semi-automatic machine)
14 teeth

To work at a maximum temperature of 65ºC

With or without end caps.

With stainless steel thread and caps with screw and anchor x 3 units

Can be cut to smaller body lengths.

The desired total length can be obtained by joining modules together that are fully assembled by means of the teeth.

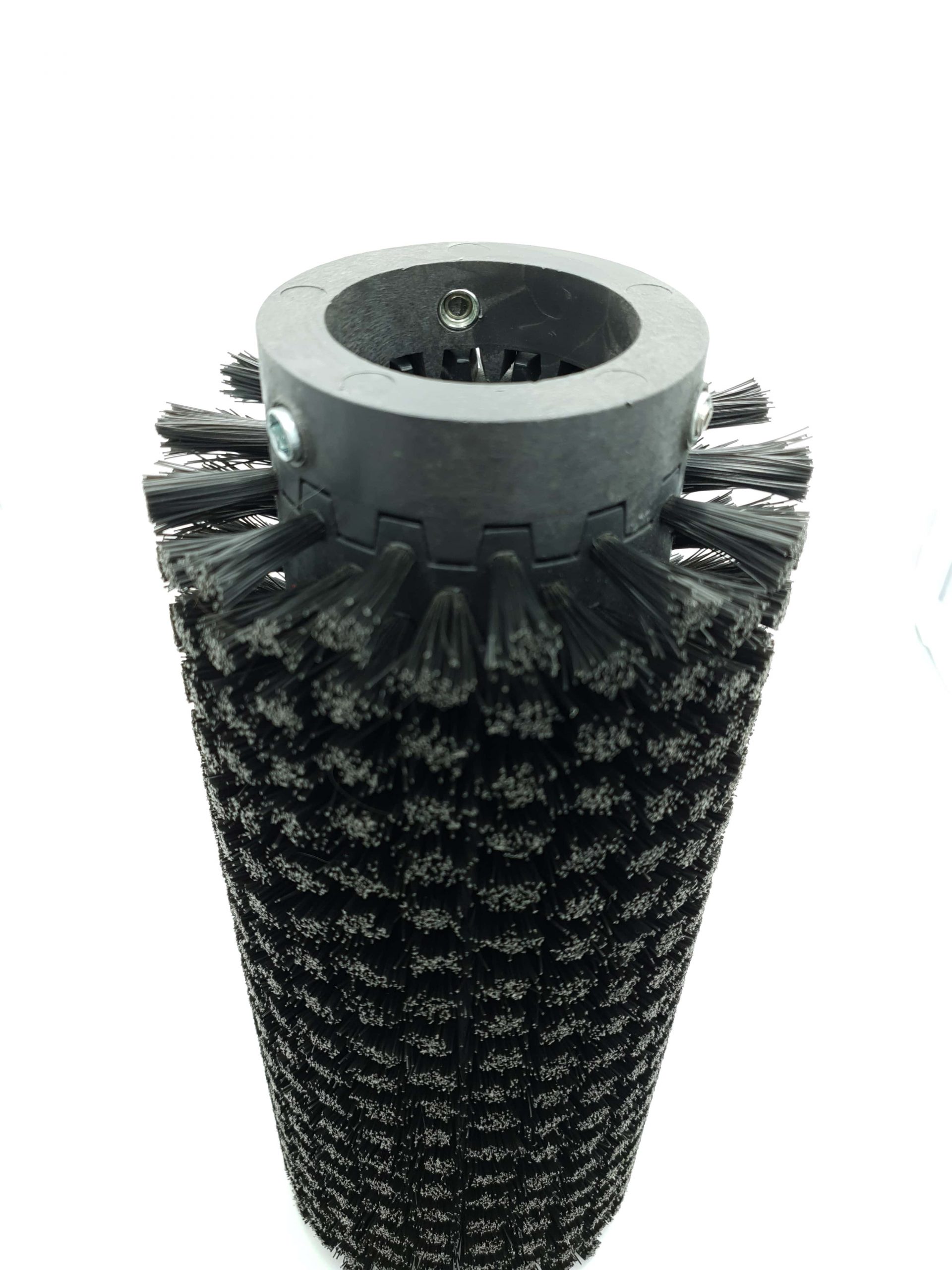

Optionally you can add end caps for a better finish.

Without the caps, a through hole can be made to fit the brush to the shaft and make it rotate.

It is an economical and versatile module that solves multiple cleaning and washing applications.

They can be made from synthetic and natural fibers.

The fiber layout and density can also be chosen according to the application.

With more than 15 years of experience in industrial technical brushing, our technicians can advise you on the best option for your application.
