Serrated modular cylindrical brush 100
For applications that require cylindrical brushes with higher quality bodies, we offer you the modular toothed cylindrical brush made of polyamide and/or special reinforced polypropylene that makes them light, resistant to acids and alkalis as well as suitable for use in the food industry.
We offer 11 standard core diameters; from 33mm diameter to 176mm body
Length modules 100mm
With three variations of fiber density: low, medium and high.
Almost all grades of fill material can be used; synthetic, natural, abrasive and
even metallic.

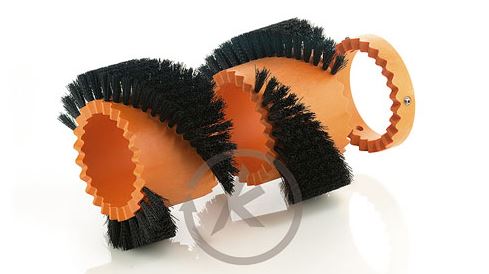

The assembly of a cylindrical brush with toothed modules is very quick and easy

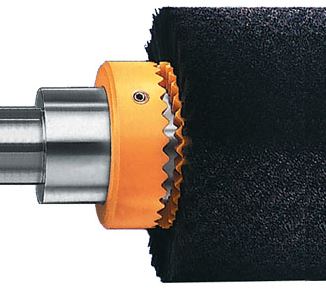

Possibility of caps / fixing rings at the ends
Plan to select product:

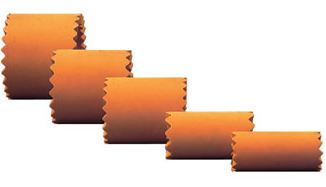

Polypropylene toothed body
Fiber Density: High, Medium, Low
Fiber to choose between:
Synthetic: polyamide, polypropylene, polyester
Natural: horsehair, tampico
Abrasives: silicon carbide or aluminum oxide with different grains
straight or wavy

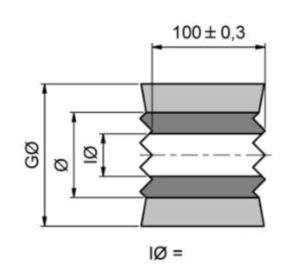

| Ø Body | ØI interior | ØG Total MIN | ØG Total MAX | Length | Fiber density | Fiber |
|---|---|---|---|---|---|---|
| 32 | 20 | 40 | 160 | 100 | A – M – B | To choose |
| 46 | 25 | 54 | 175 | 100 | A – M – B | To choose |
| 58 | 35 | 66 | 275 | 100 | A – M – B | To choose |
| 66 | 40 | 74 | 290 | 100 | A – M – B | To choose |
| 86 | 60 | 94 | 305 | 100 | A – M – B | To choose |
| 102 | 75 | 110 | 320 | 100 | A – M – B | To choose |
| 127 | 100 | 135 | 345 | 100 | A – M – B | To chosse |
* All dimensions in mm
Polypropylene toothed body
Fiber Density: High, Medium, Low
Fiber to choose between:
- Synthetic: polyamide, polypropylene, polyester
- natural; horsehair, tampico
- abrasives; silicon carbide or aluminum oxide with different grains
- straight or wavy
| Ø Body | ØI interior | ØG Total MIN | ØG Total MAX | Length | Fiber density | Fiber |
|---|---|---|---|---|---|---|
| 32 | 20 | 40 | 160 | 100 | A – M – B | To choose |
| 46 | 25 | 54 | 175 | 100 | A – M – B | To choose |
| 58 | 35 | 66 | 275 | 100 | A – M – B | To choose |
| 66 | 40 | 74 | 290 | 100 | A – M – B | To choose |
| 86 | 60 | 94 | 305 | 100 | A – M – B | To choose |
| 102 | 75 | 110 | 320 | 100 | A – M – B | To choose |
| 127 | 100 | 135 | 345 | 100 | A – M – B | To choose |
* All dimensions in mm
The 100 toothed modular cylindrical brush solves a wide variety of industrial cleaning applications, but you can also see the full range of cylindrical brushes that we offer.
